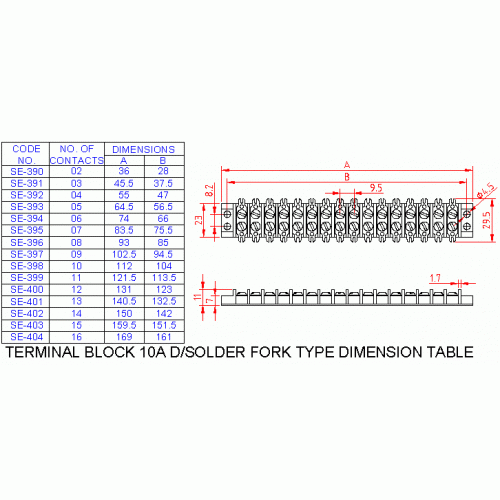

Terminal Block Double Solder Fork Type 10A 3 Way
SE391 Terminal Block Double Solder Fork Type 10A 3 Way is used mainly in applications like:
- Application in general industrial equipment and home appliances like uninterrupted power supplies.
- Invertors
- Printers
- Stabilizers
- Air Conditioners
- Automobiles
- Weighing Scale Equipment
- Industrial Lights
SE391 Terminal Block Double Solder Fork Type 10A 3 Way main features are:
- Rigid Design
- Brass Screws Nickel Plated
- Insert Moulded Brass Bush in Housing
- Both Side Soldering Option
Technical Specifications:
| H.V Breakdown test | > 1.5 KV AC for 1 Minute |
| Current Rating | 10A 250 V AC |
| Contact Resistance | < 10 m Ohms |
| Insulation Resistance | > 1000m ohm |
| Ambient Temperature | -25 °C to + 80 °C |
| Housing Material | Phenolic Moulded |
| Terminals | Brass |
| Terminals Finish | Nickel Plated |
| Mounting | Chassis Mounting |
| Color | Black |
