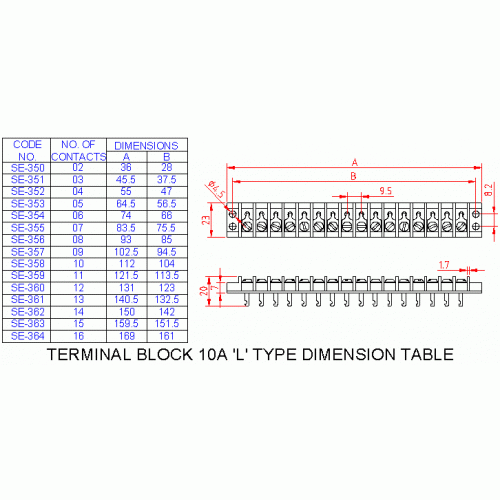

Terminal Block 10 A “L” Type 6 way
Technical Specifications:
| H.V Breakdown test | 2 KV AC for 1 Min |
| Current Rating | 5A 250 V AC |
| Contact Resistance (Ohm) | <10 m |
| Insulation Resistance (Ohm) | >1000 M |
| Cover Material | Polycarbonate |
| Terminal Finish | Silver Plated |
| Housing Material | G.F. Polyamide UL 94 3V |
| Terminals Material | Brass |
| Mounting Types | Chassis Mounting |
