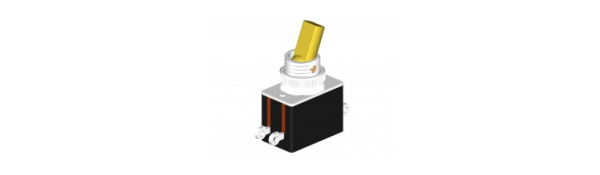

SPDT Single pole Double throw 5A (613) ON-ON

Brand : soynia

SPDT Single pole single throw 5A (613) ON-ON  Nylon shaft

(**You can add metal shaft at an additional price, contact us by clicking here)

Better prices? Click here for bulk enquiry

SPDT Single pole single throw 5A (613) ON-ON – 10 nos

SE613 Toggle Switch 5A SPDT  is used in applications like application in general industrial equipment and home appliances.
SE613 Toggle Switch 5A SPDT   main feature is:
    • Long Life, High number of Operations

Technical Specifications:





HV Breakdown Test 1 KV AC For 1 Minute
Contact Rating 1.5 A 250 V AC
Contact Resistance <10m ohm
Insulation Resistance > 100m ohm
Operating Force 800 Gms Approx.
Mechanical Life (No. Of Operations) 50,000 Operations
Electrical Life (No. Of Operations) 10,000 Operations
Ambient Temperature -25 ° C to +80 ° C
Mounting Arrangement Panel Mounting , Chassis Mounting
Body Color Black
Housing Material Electrical Grade Phenolic
Toggle Knob Material Polyamide 66 UL 94 V3 / Brass Chrome Plated
Terminals Material Brass Silver Plated
Terminal Type Solder
Button Colors Available Black
White
Red
Yellow
Green
Blue
Housing Colors Available Black



Weight 1 kg
Dimensions 10 × 10 × 10 cm
