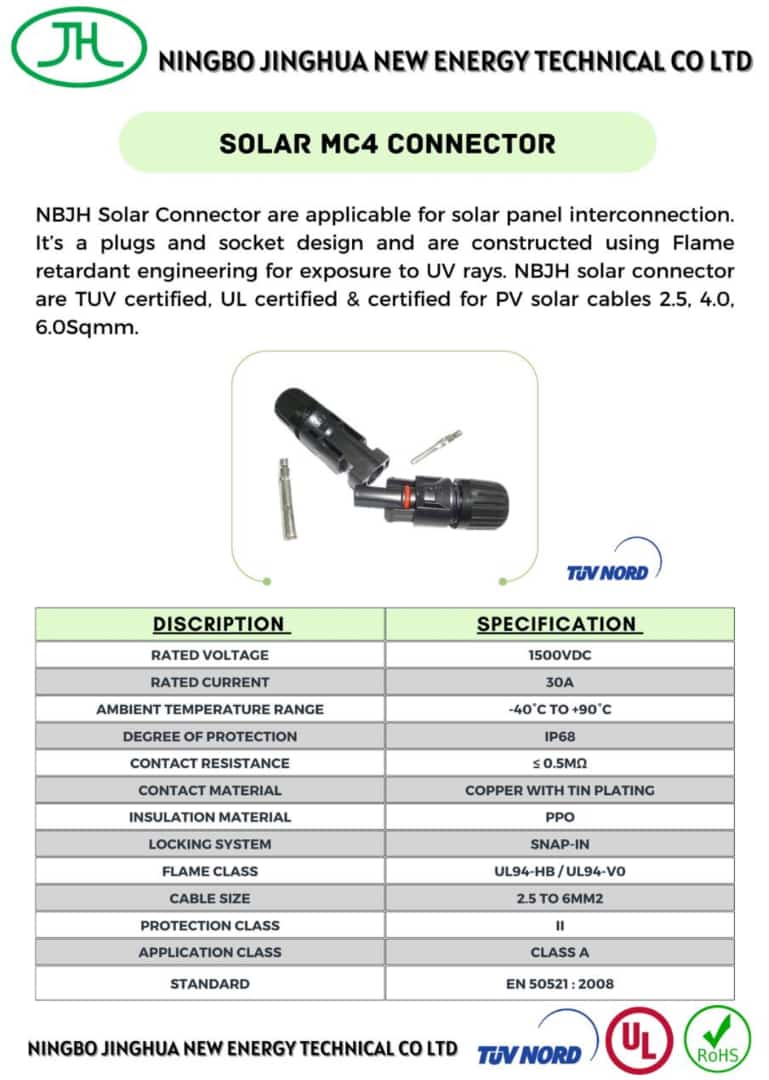

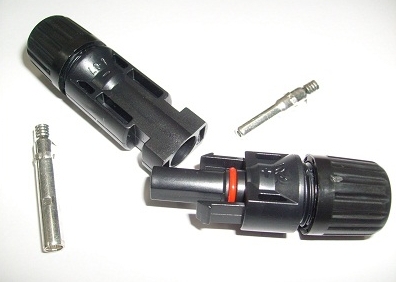

MC4 SOLAR CONNECTOR SET (MALE & FEMALE)

Cable connectors are being offered with following salient features

• • Rated current is 30 A
  • Rated voltage is 1500 Vdc
  • Test voltage is 8000 V AC (1 min)
  • Contact resistance is ≤ 0.35 mΩ
  • Degree of Protection is IP 68
  • Contact material is Copper with silver plating
  • UN-Locking System is by a tool
  • Temperature range -40°C to + 85°C
  • Upper limiting temperature is 100°C
  • Suitable cable size 2.5, 4, 6 sq.mm
  • Insertion force ≤50N
  • Withdrawal force ≥190N
  • Sealing material Silicon material
