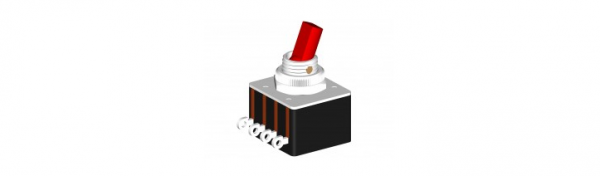

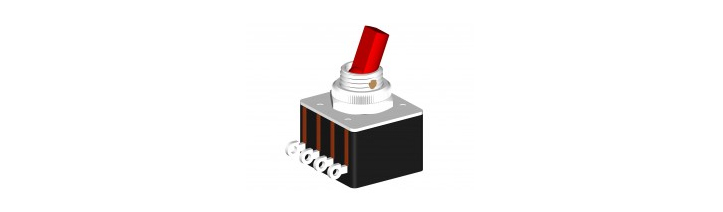

SE624 Toggle Switch 5A DPST is used in applications like application in general industrial equipment and home appliances.
SE624 Toggle Switch 5A DPST main feature is:
-
-
Long Life, High number of Operations
-
Technical Specifications:
| HV Breakdown Test | 1 KV AC For 1 Minute |
| Contact Rating | 1.5 A 250 V AC |
| Contact Resistance | <10m ohm |
| Insulation Resistance | > 100m ohm |
| Operating Force | 800 Gms Approx. |
| Mechanical Life (No. Of Operations) | 50,000 Operations |
| Electrical Life (No. Of Operations) | 10,000 Operations |
| Ambient Temperature | -25 ° C to +80 ° C |
| Mounting Arrangement | Panel Mounting , Chassis Mounting |
| Body Color | Black |
| Housing Material | Electrical Grade Phenolic |
| Toggle Knob Material | Polyamide 66 UL 94 V3 / Brass Chrome Plated |
| Terminals Material | Brass Silver Plated |
| Terminal Type | Solder |
| Button Colors Available | Black White Red Yellow Green Blue |
| Housing Colors Available | Black |
